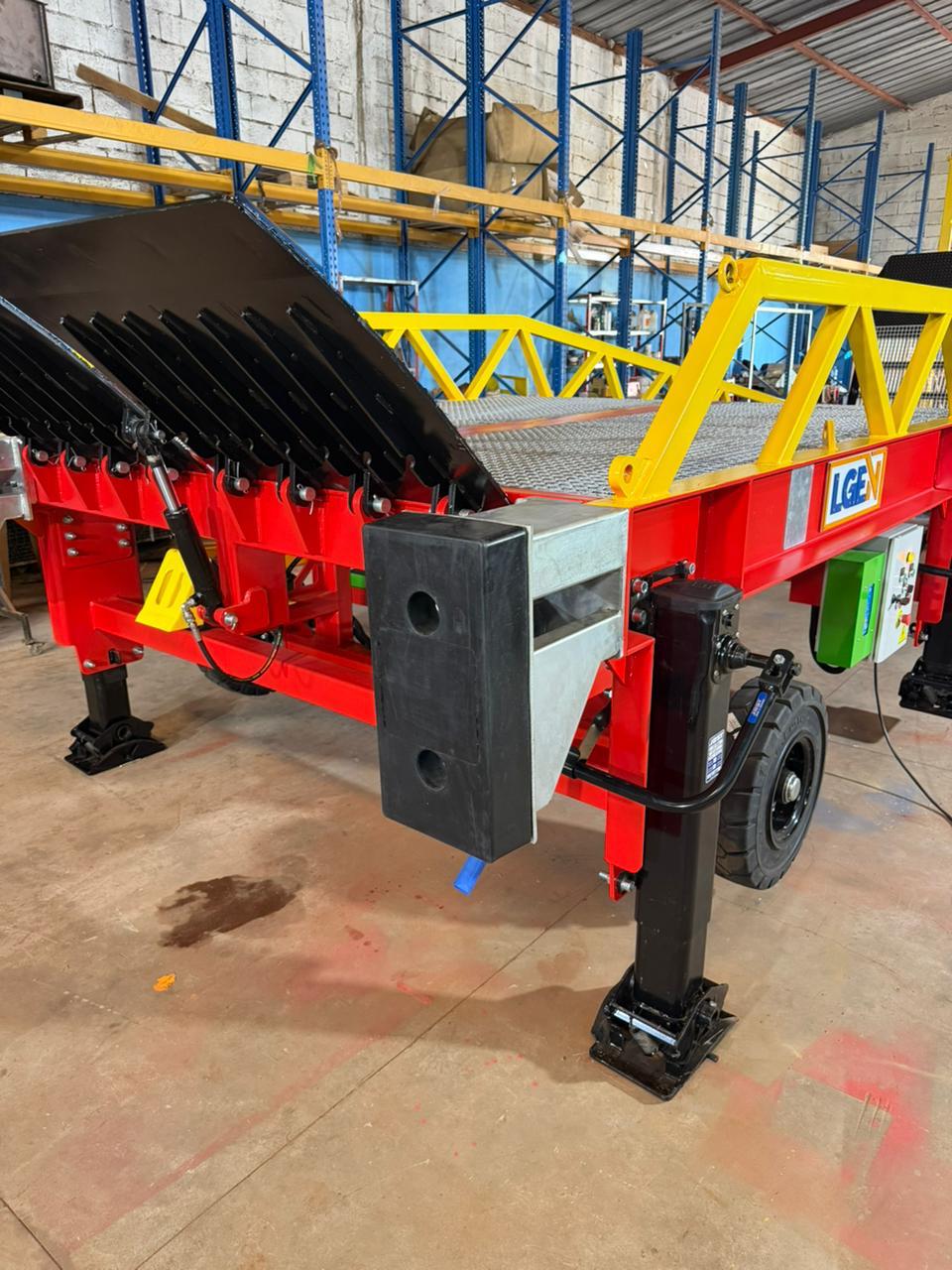

Mobile & Fixed Loading Ramps

Name: Mobile & Fixed Loading Ramps
Brand: LGEN

LGEN manufactures secure, custom mobile and fixed ramps for industrial loading and unloading — designed and assembled in Casablanca, Morocco.

Request a Quote

Securing every loading operation

Our mobile and fixed ramps make loading and unloading trucks, containers and trailers easy and safe: anti-slip platform, regulatory guardrails, area signage and welded structure sized for intensive use in logistics and industrial environments.

0 Use cases & target sectors

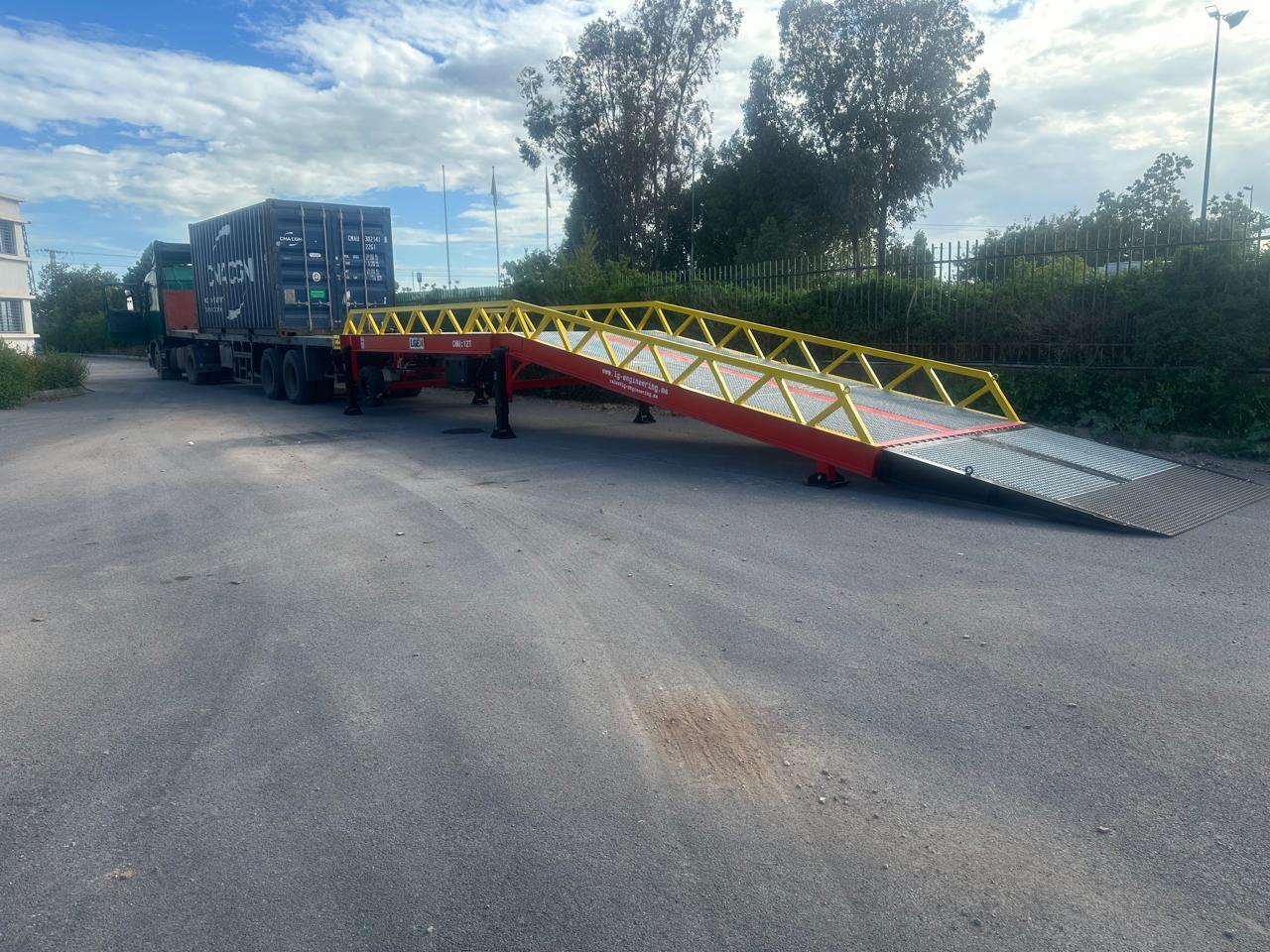

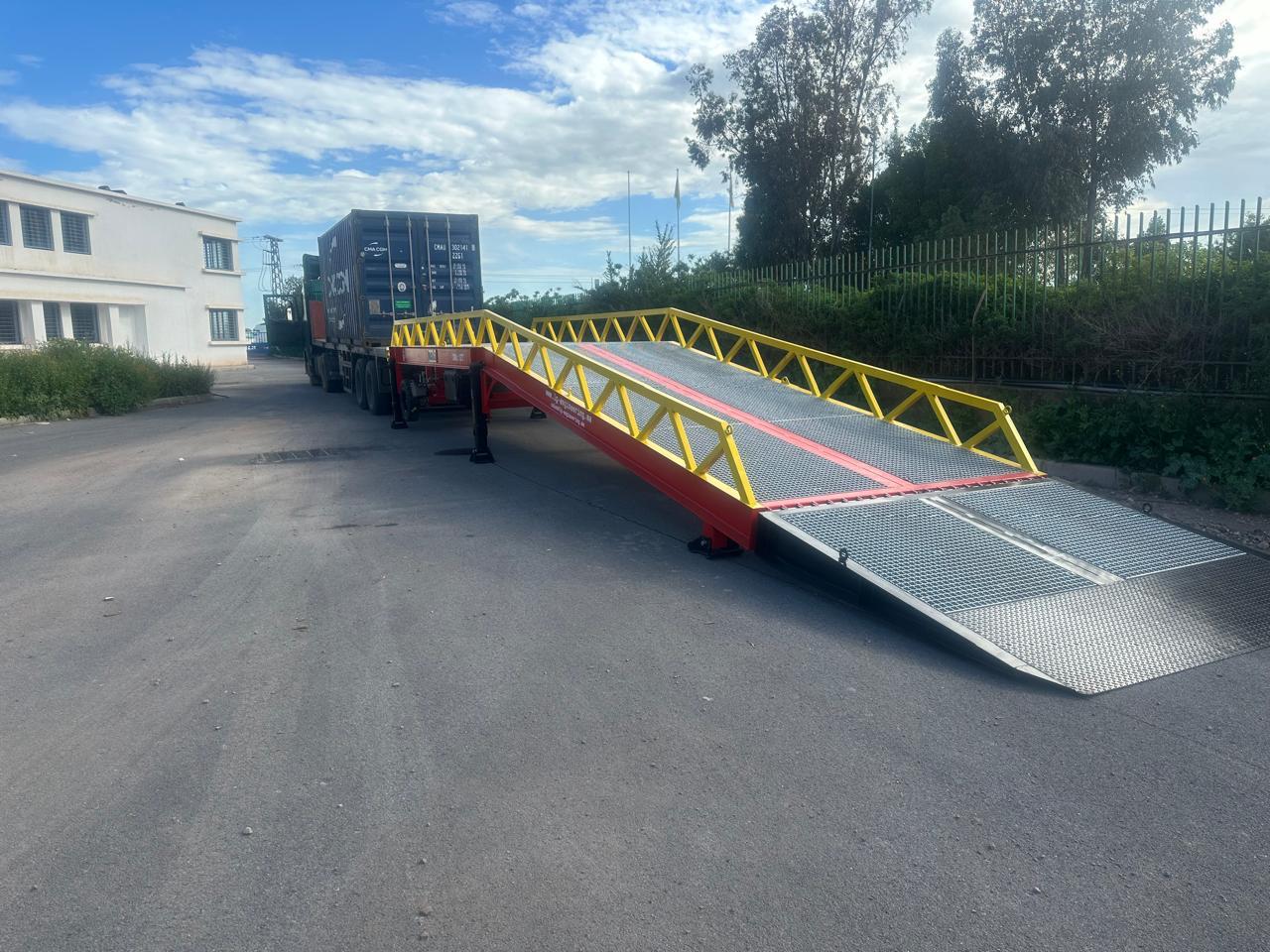

Loading / unloading trucks and containers at the dock
Temporary or permanent logistics areas
Industrial sites without a fixed loading dock
Handling loads with forklifts or pallet trucks

Industrial mobile ramps from 6 to 20 tonnes

Custom design and manufacturing for your loading and handling operations

LGEN designs and manufactures custom industrial mobile ramps from 6 to 20 tonnes, for loading, unloading and handling operations in industrial, logistics and production environments.

Developed by our engineering department and manufactured according to each application's needs, our ramps are designed to offer a balance between robustness, safety, mobility and ease of use.

The design can be adapted notably to dock height, the type of equipment used, the load to be handled and operating constraints. This custom approach is part of LGEN's know-how.

A ramp designed to your needs

Each project is studied according to the actual characteristics of your installation. LGEN can adapt notably:

Load capacity: 6 to 20 tonnes
Total ramp length
Usable width
Working height
Length of the horizontal section
Length of the sloped section
Slope
Access and connecting lips
Stabilization system
Handling system
Safety equipment

In the technical configuration studied, for example, the height can be set between 1,150 and 1,650 mm, with a slope adapted to the height of use.

Technical specifications

An LGEN ramp is not simply standard equipment: it is designed according to your working environment.

Characteristic	Technical configuration
Type	Industrial mobile ramp
Capacity	6 to 20 tonnes, custom design
Capacity offered for rental	12 tonnes
Overall width	2,390 mm*
Usable width	2,250 mm*
Sloped length	5,000 mm to 7,423 mm*
Entry platform length	2,077 to 5,500 mm*
Horizontal length	2,500 mm*
Total deployed length	Per case and client request
Height	1,150 to 1,650 mm*
Slope	13.70% to 17.09%*
Surface	Anti-slip galvanized grating
Stabilization	2 to 4 adjustable jacks per client need, 12-tonne capacity each
Handling	Handling drawbar
Hydraulics	Manual or electric hydraulic pump
Safety	HR chains + wheel chocks
Treatment	Sandblasting + high-resistance paint

* Dimensions given as a reference for the standard technical configuration — adaptable to your project.

Robust industrial design

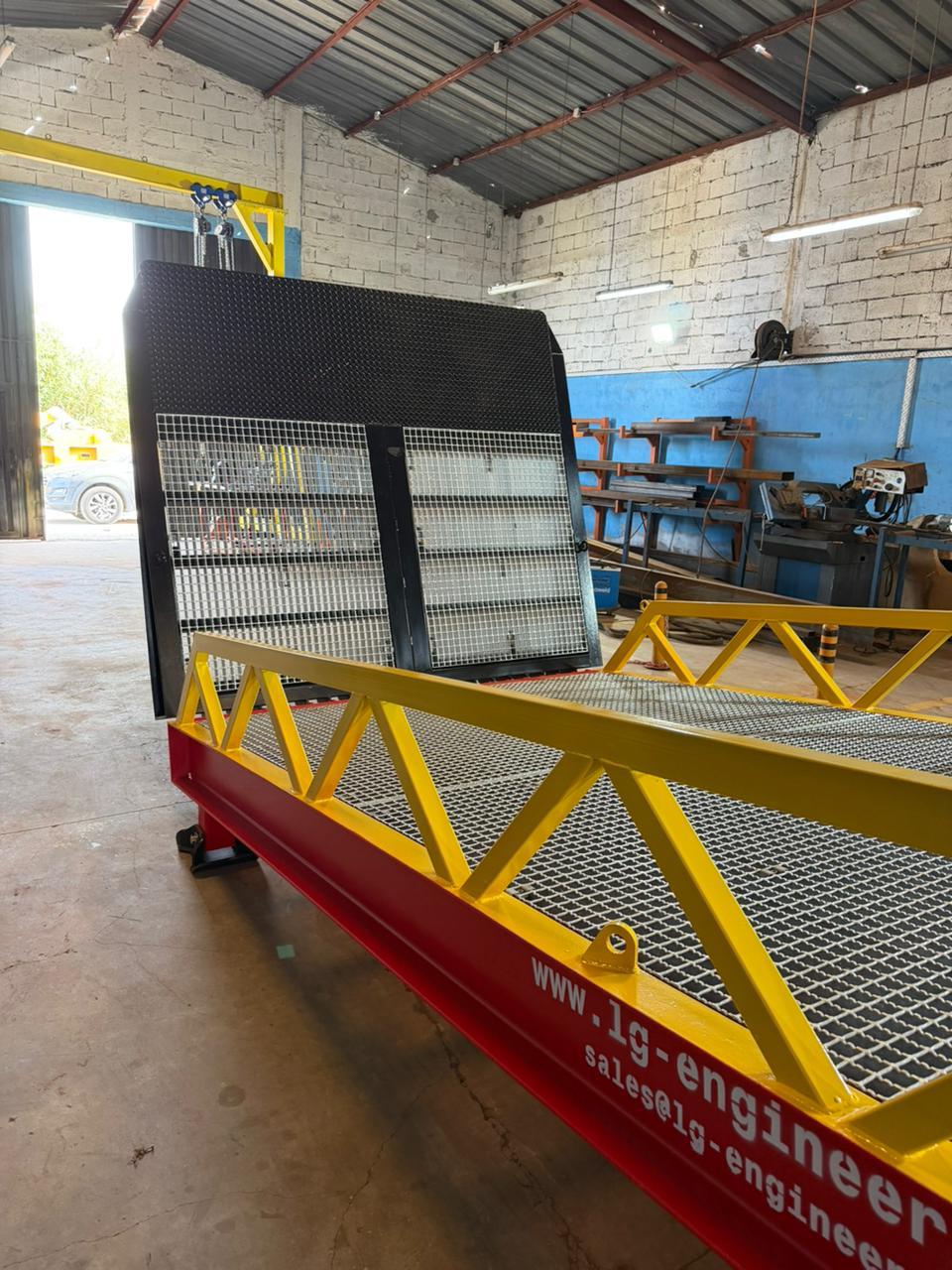

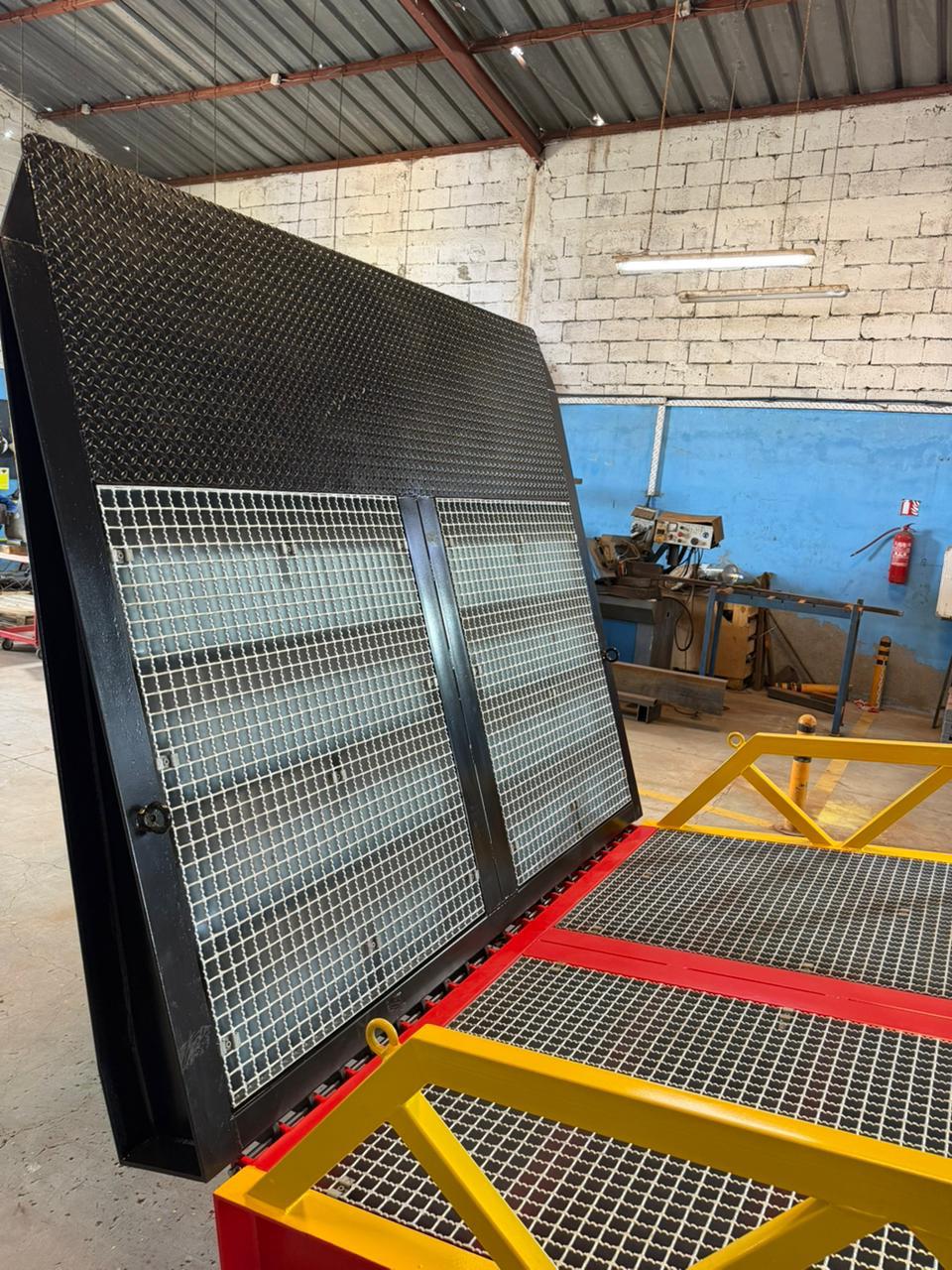

LGEN ramps are designed to withstand industrial use and repetitive handling operations. The rolling surface can be made of electro-forged galvanized grating, with self-cleaning half-moon knurling for grip.

Anti-slip surface

Heavy-duty grating designed to provide good resistance and grip suited to handling operations.

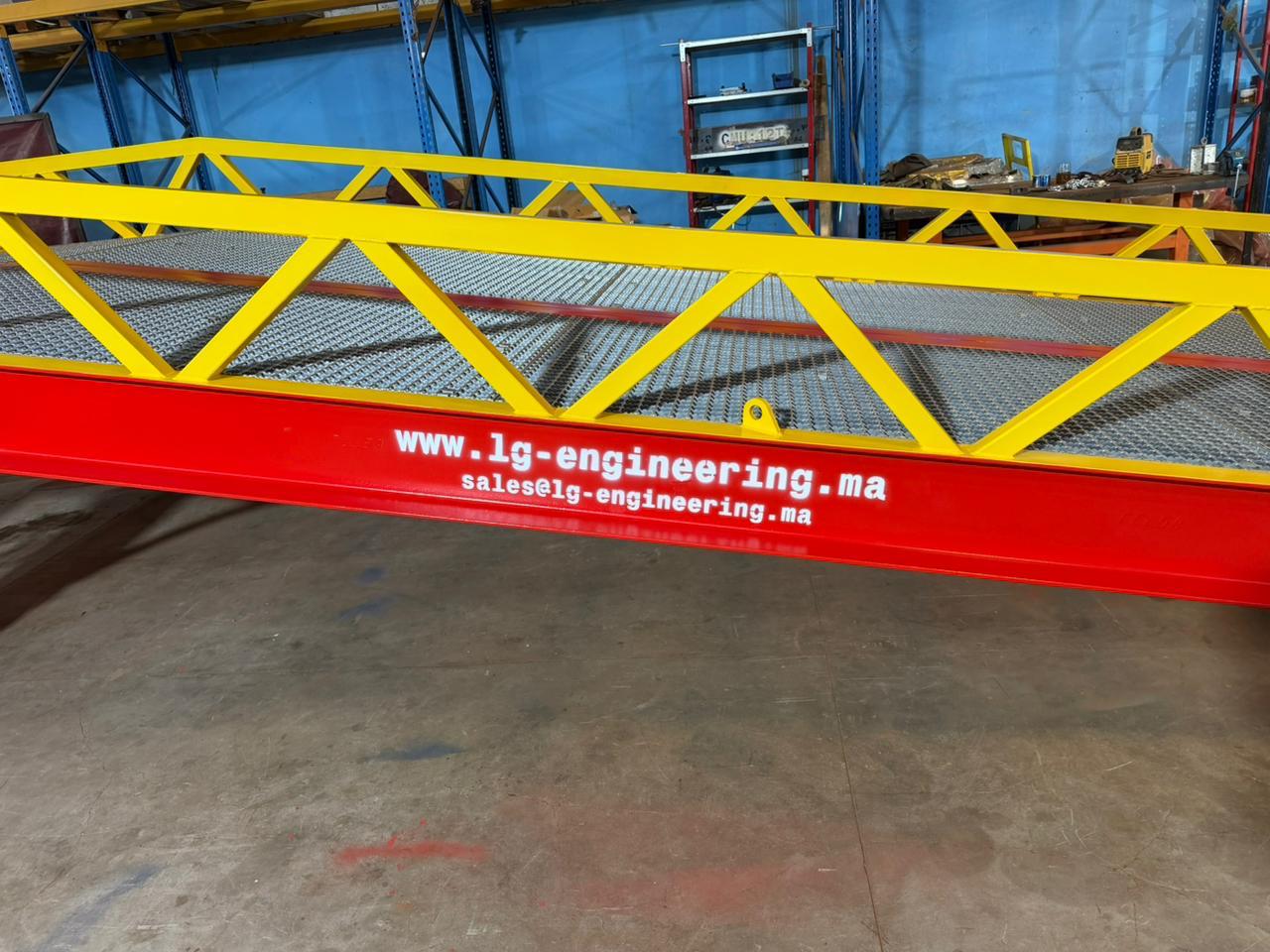

Safety railings

Side railings can be integrated to reinforce safety during operations — 380 to 400 mm high in the configuration presented.

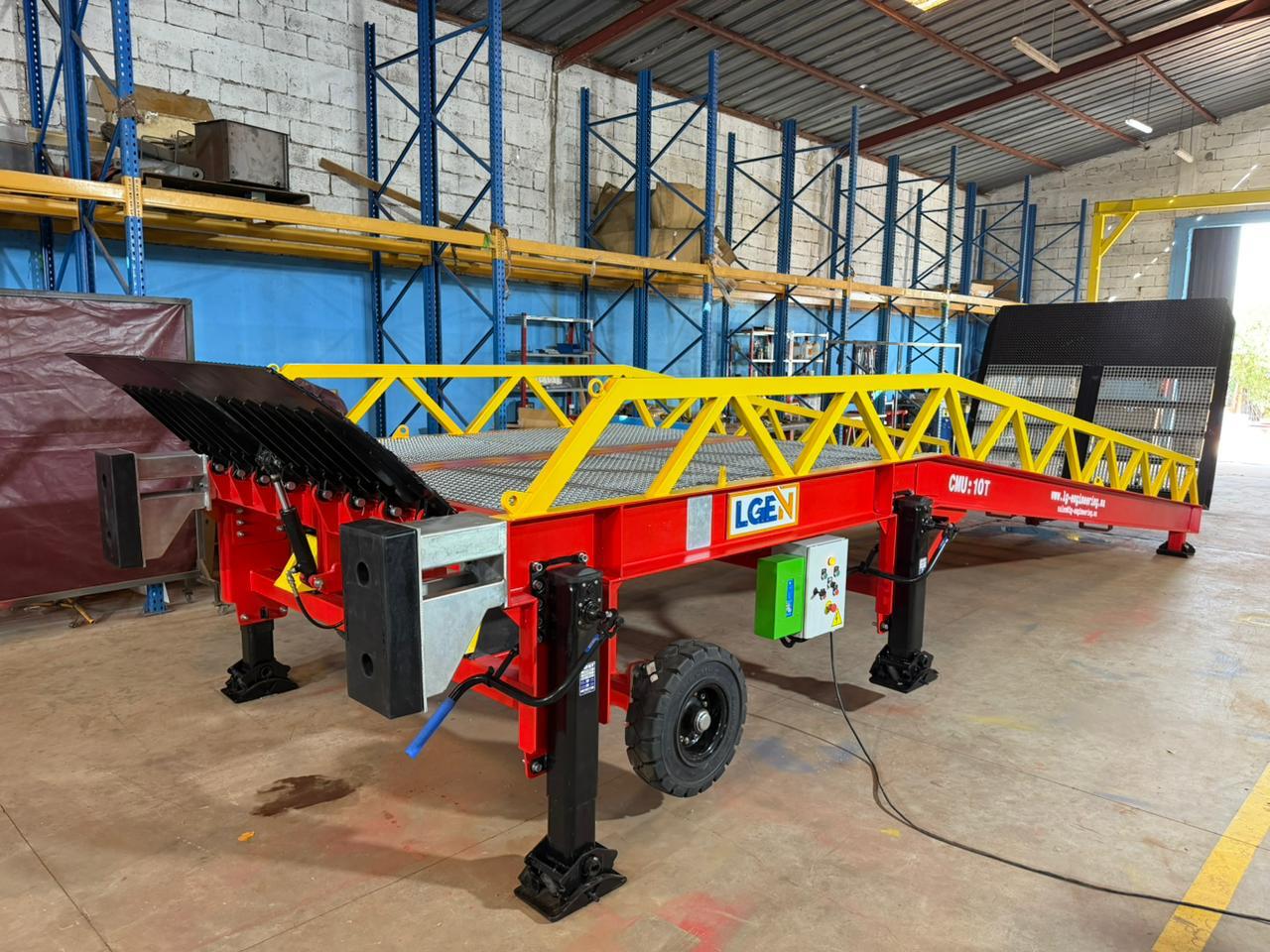

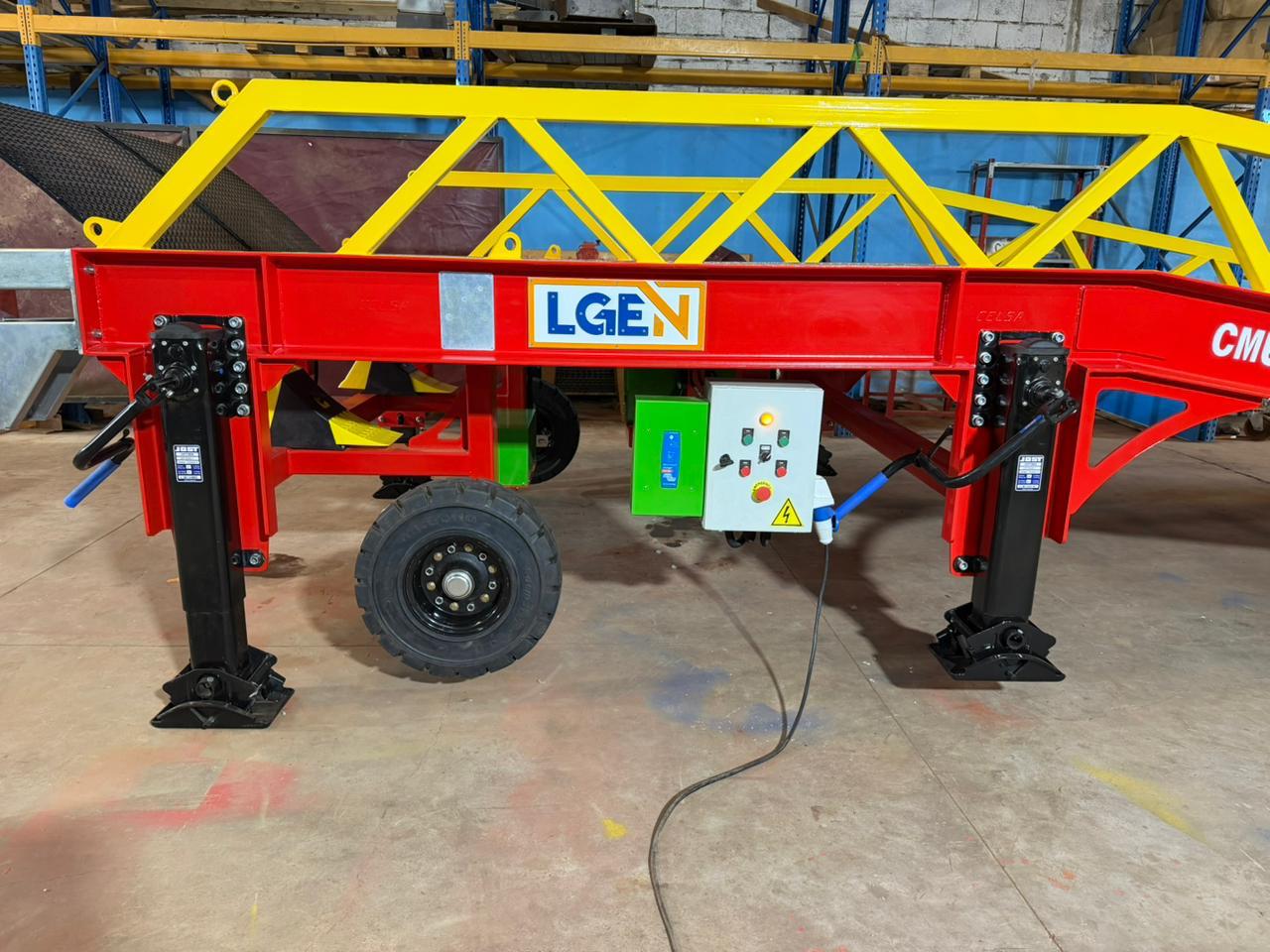

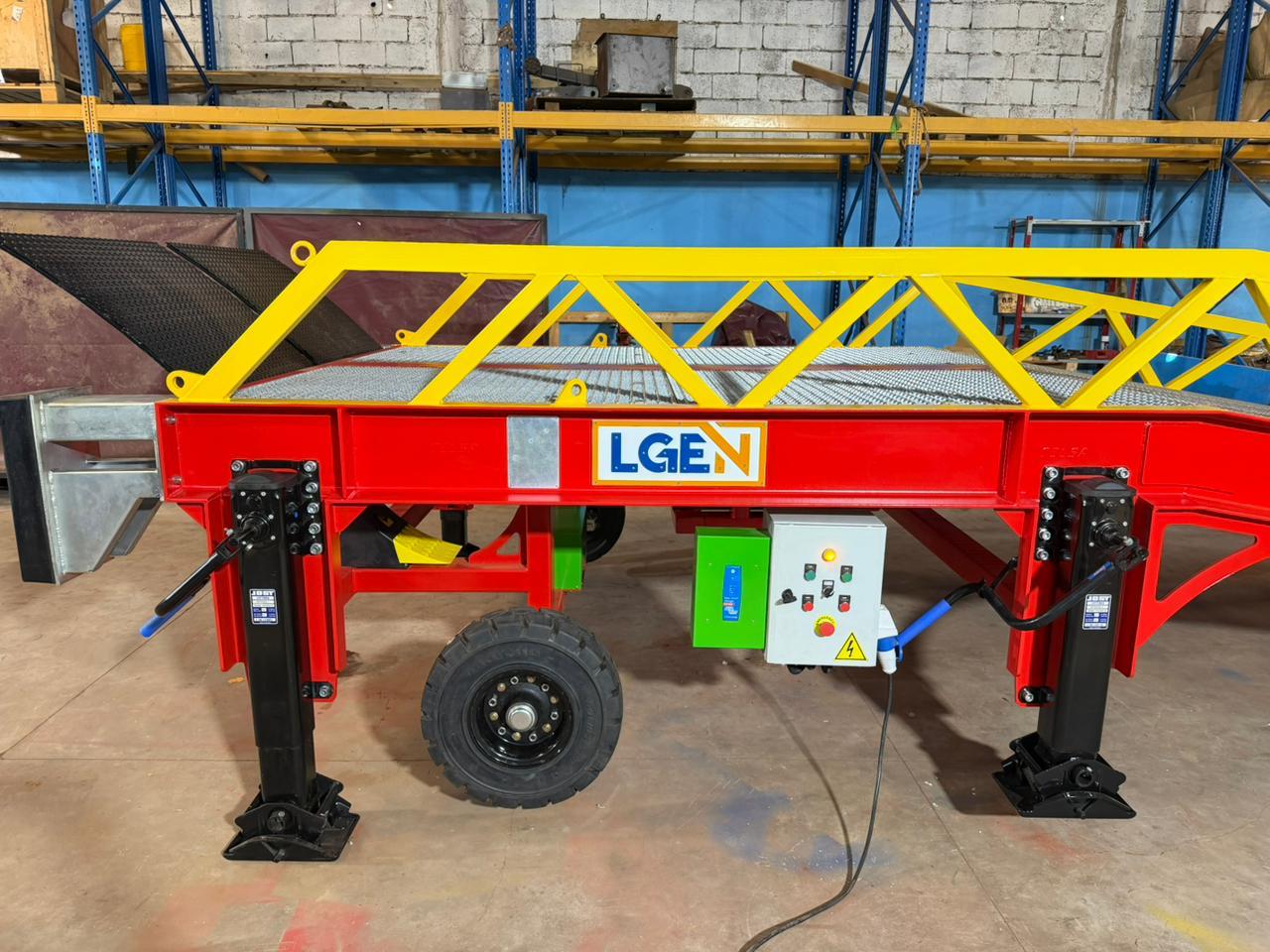

Adjustable jacks

Height-adjustable jacks to stabilize and adapt the ramp to the site configuration.

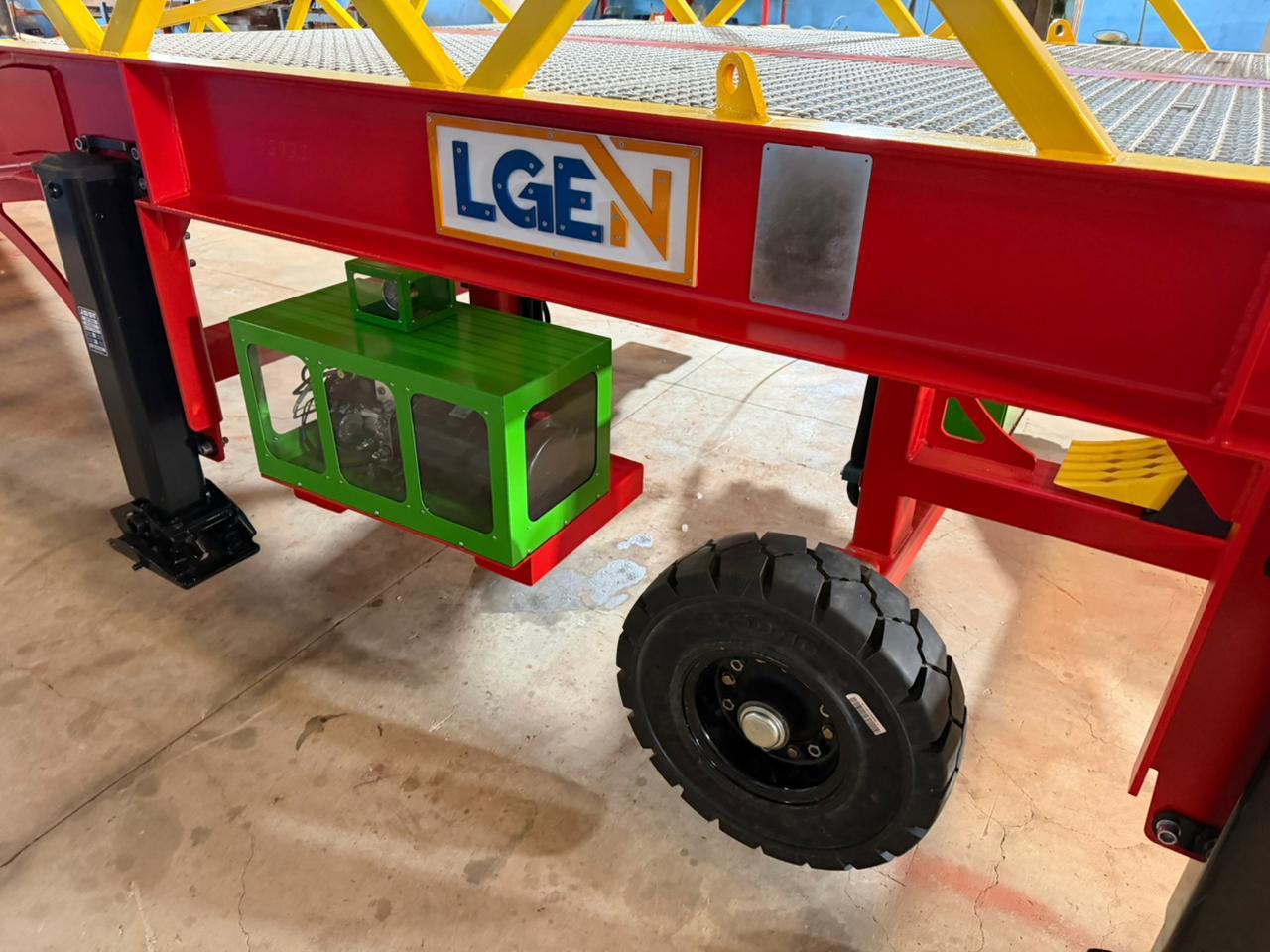

Handling system

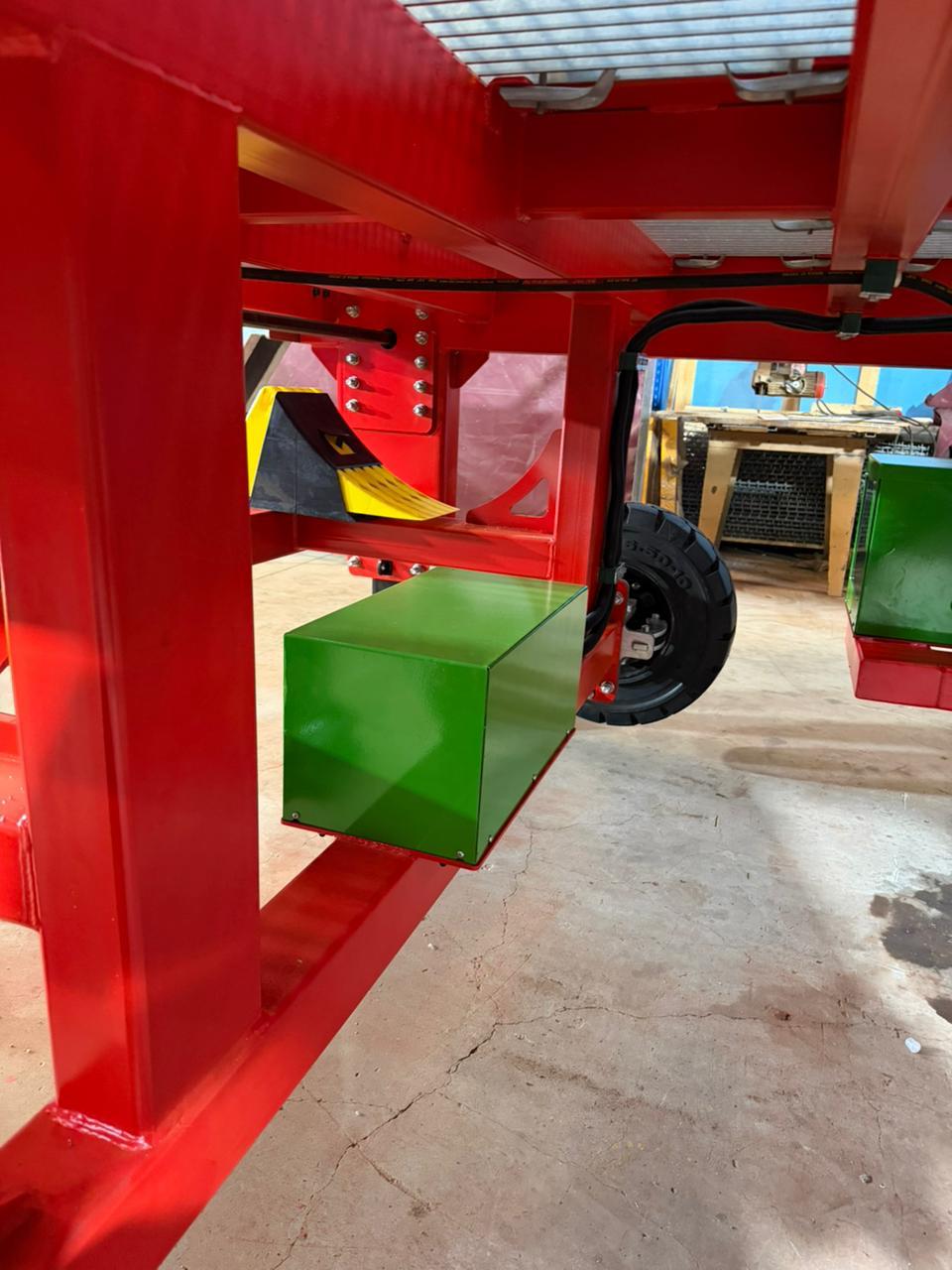

Special wheels and a handling drawbar with forklift pocket, making the ramp easier to move.

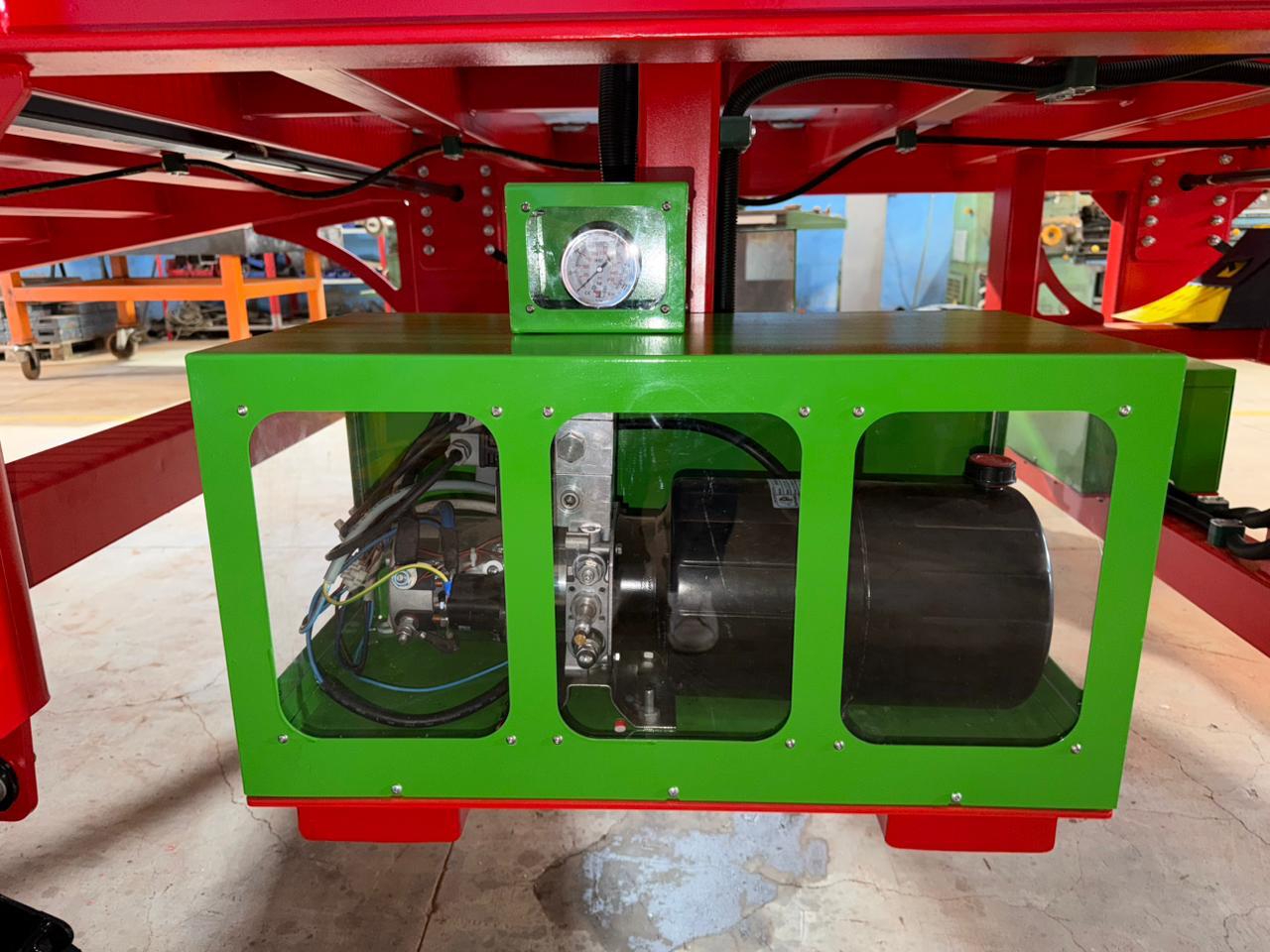

Hydraulics & lips

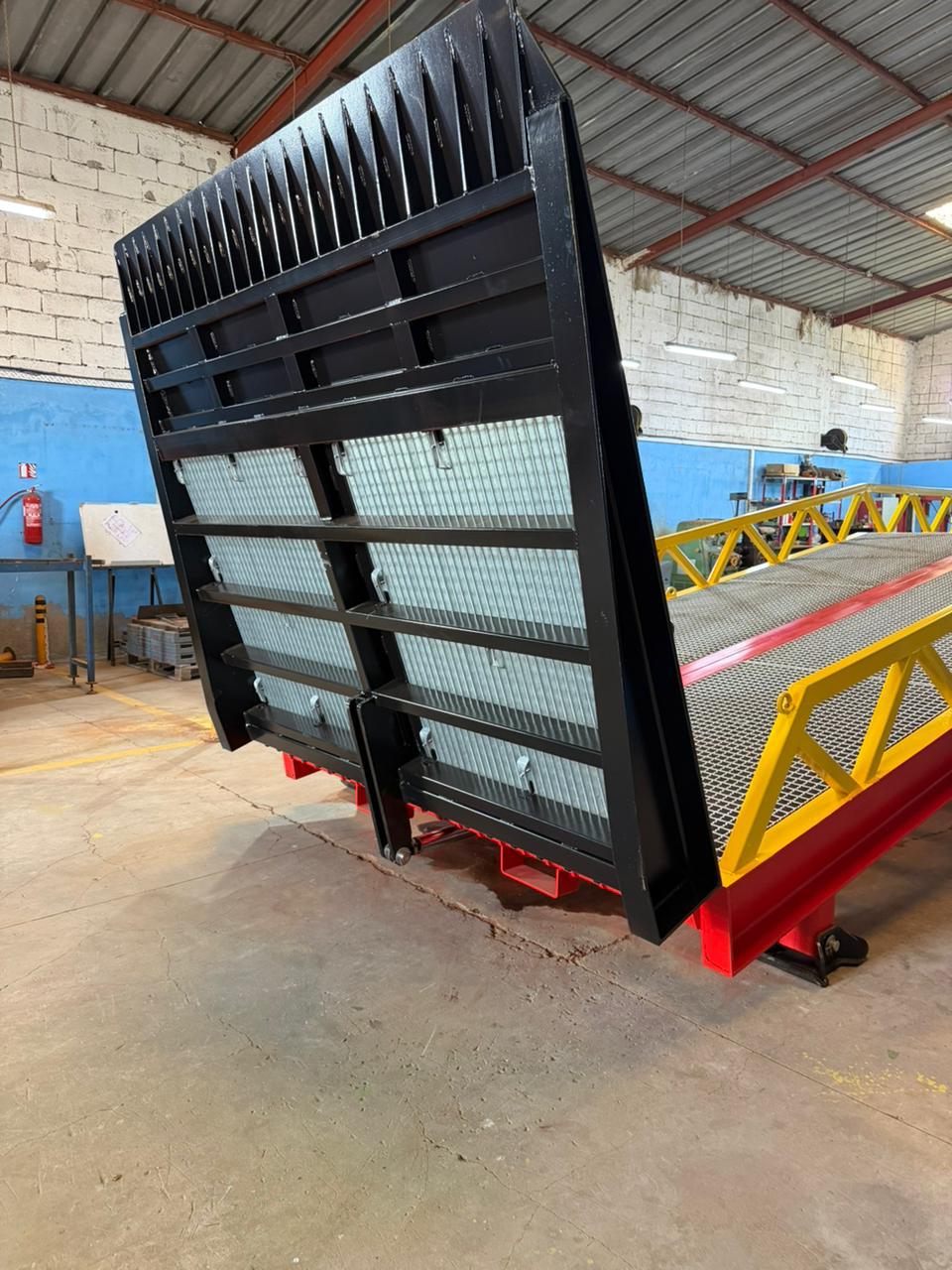

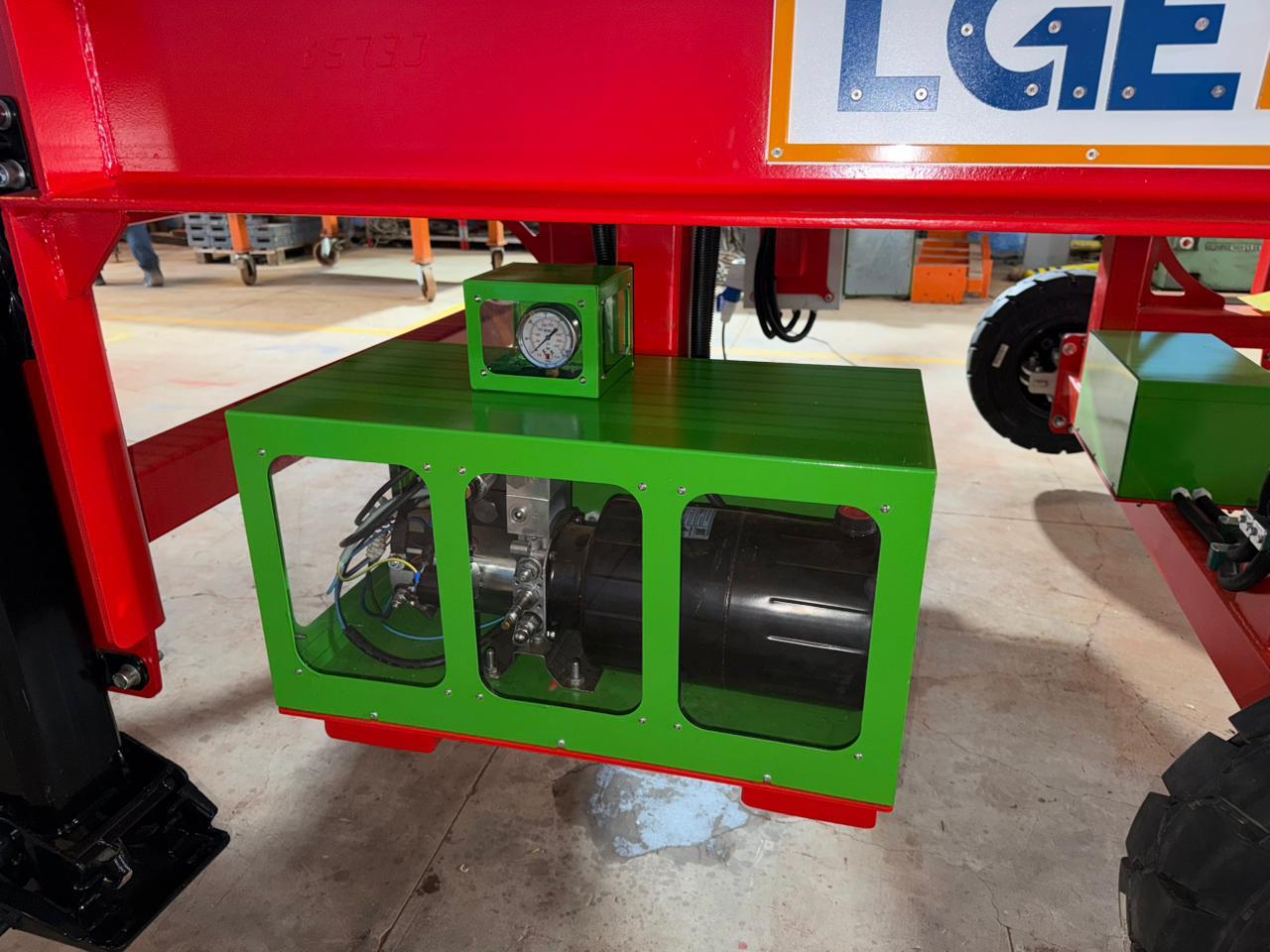

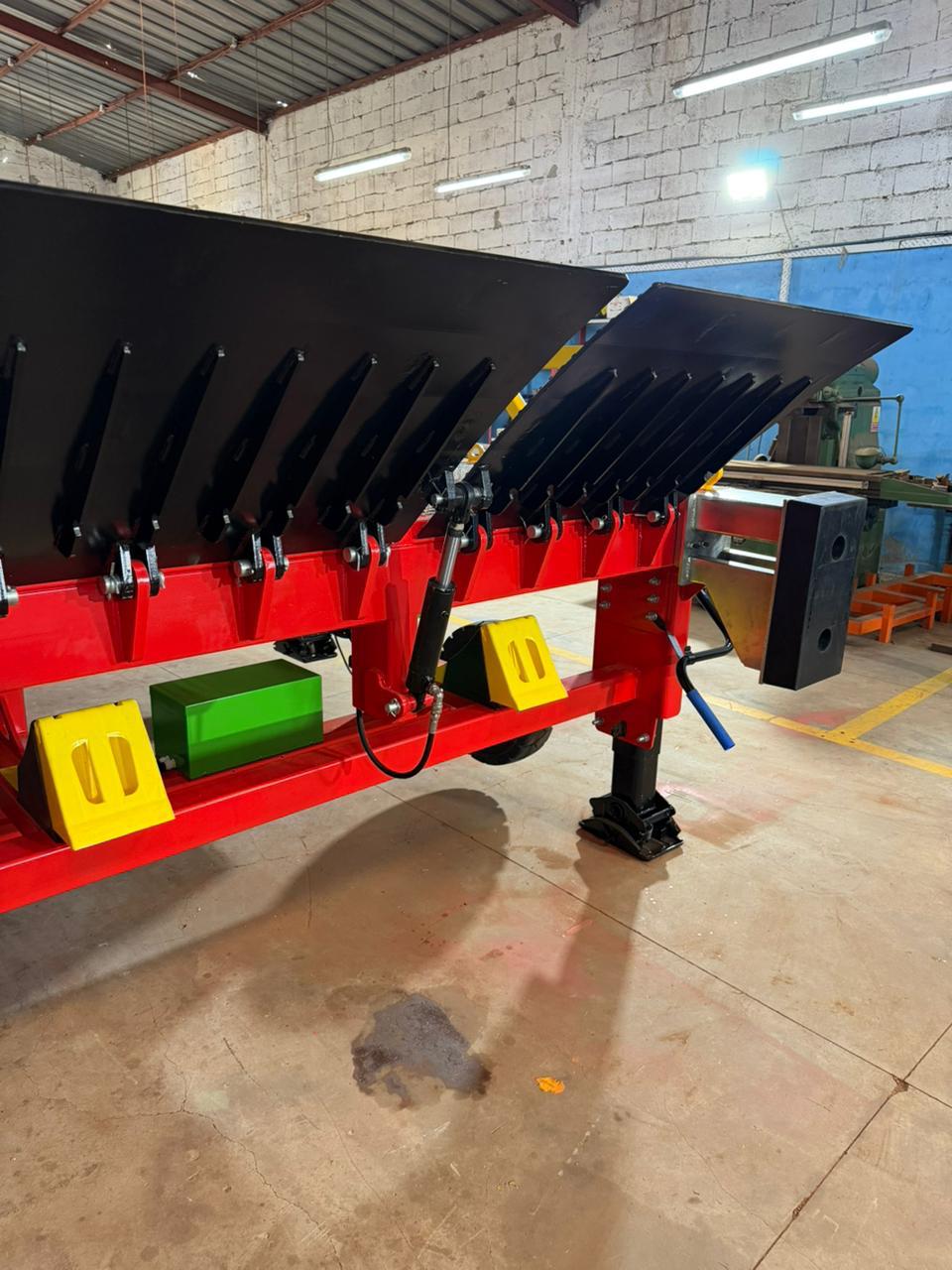

Manual hydraulic pump (or 12V electric configuration on request) to actuate the cylinder and entry platform; foldable front/rear lips available on request.

Built-in safety

LGEN ramp design incorporates various devices to secure their use:

Anti-slip rolling surface
Safety railings
Adjustable jacks
Safety chains
Wheel chocks

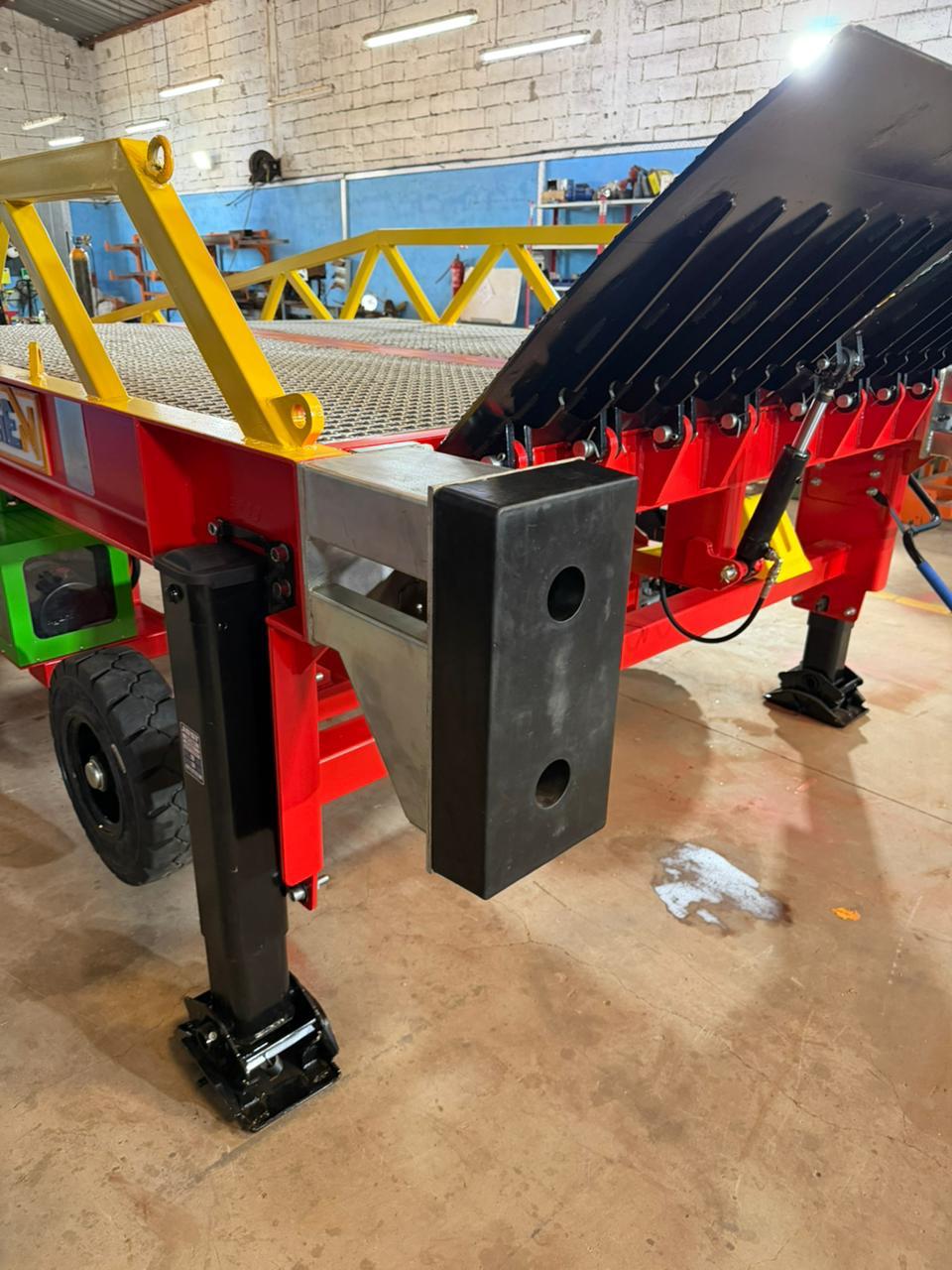

Protective bumpers
Stabilization system
Protective elements adapted to the configuration

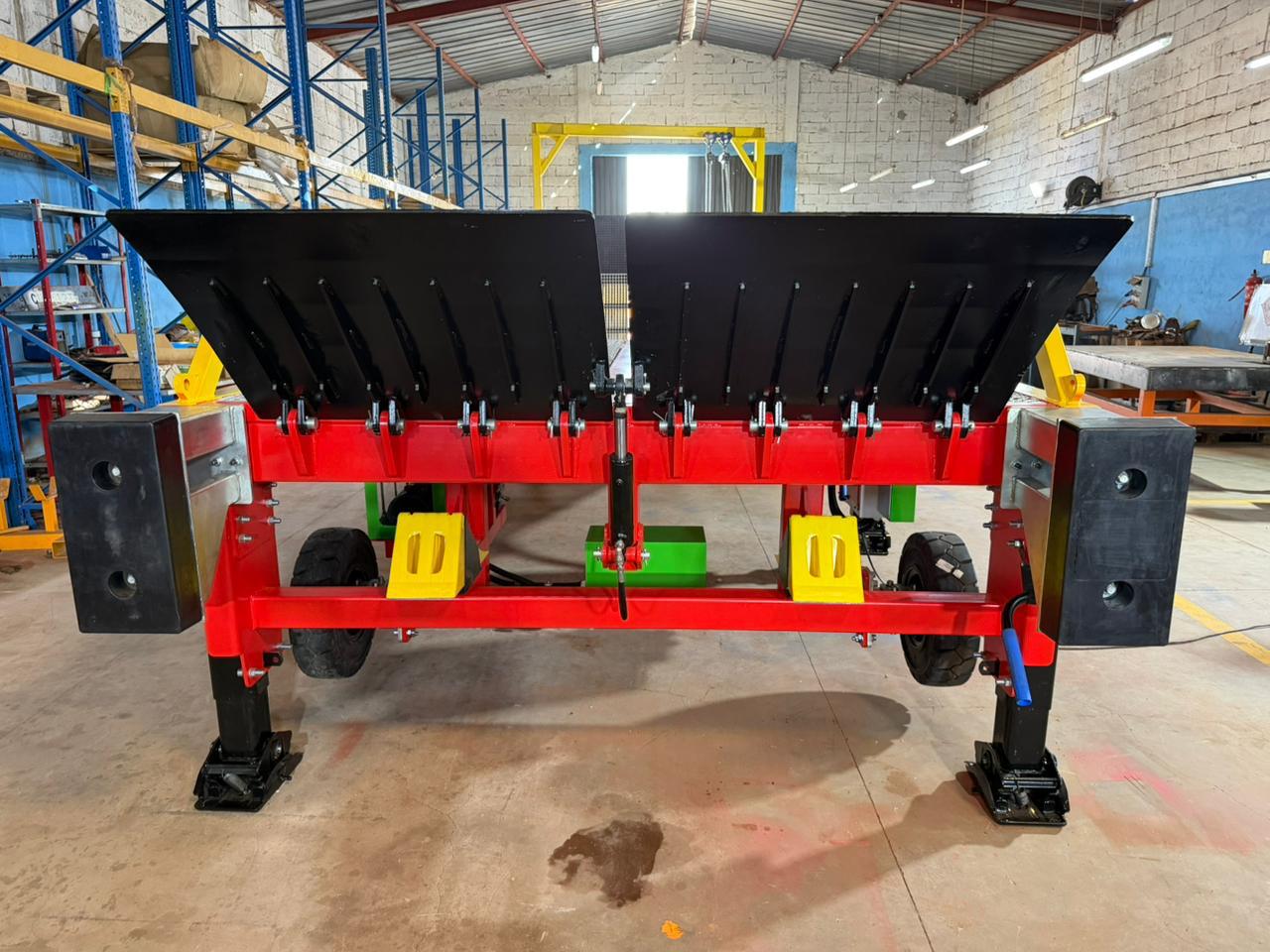

The technical configuration presented includes notably Grade 100 HR safety chains, four wheel chocks and protective bumpers resistant to crushing and abrasion.

Versatile ramps for industry and logistics

LGEN mobile ramps can be designed for different applications:

Loading and unloading

Trucks
Semi-trailers
Platforms
Containers
Industrial vehicles

Industrial handling

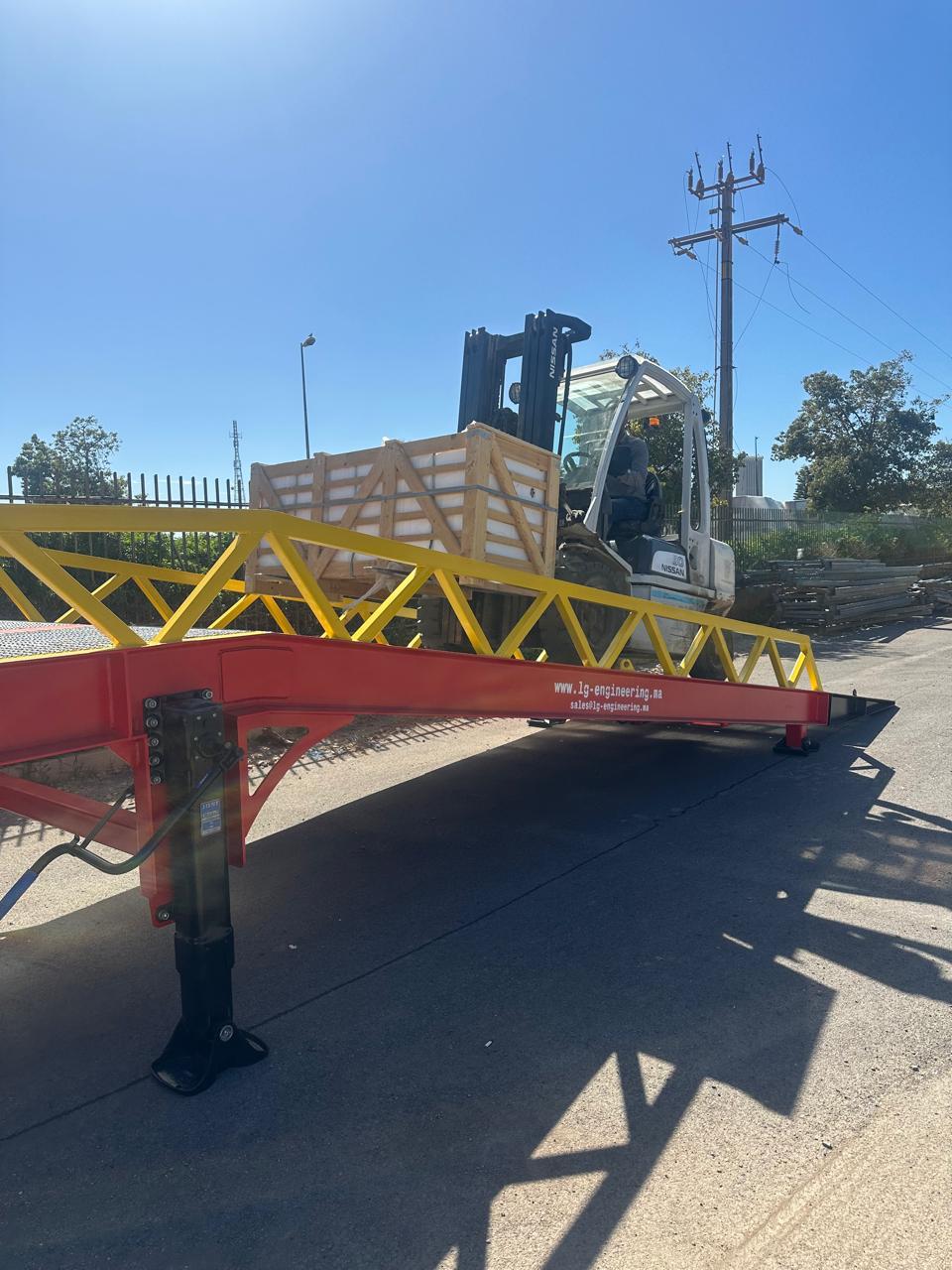

Forklifts
Handling equipment
Machinery
Industrial parts
Heavy equipment

Logistics and production

Loading finished products
Unloading raw materials
Receiving spare parts
Installing new equipment
One-off or recurring operations

The multifunctional nature of the ramp is explicitly built into our designs: loading finished products, unloading raw materials and spare parts, installing new machinery.

A truly custom solution — 6 to 20 tonnes to suit your needs

LGEN is not limited to a standard capacity or dimension. Our engineering department can define the ramp configuration based on:

Load → Height → Length → Width → Slope → Equipment → Environment → Mode of use

This logic allows us to develop ramps adapted to the specific constraints of each site. Do you have a particular dock height, load or equipment? LGEN will study the configuration suited to your application.

Finish and protection

To ensure protection suited to the industrial environment, the design presented includes full sandblasting followed by a paint system with primer and high-resistance finish. The finish can naturally be defined according to project requirements and operating conditions.

Inspection, testing and documentation

LGEN supports manufacturing with the inspections and technical documents applicable to the configuration produced. Depending on the project, documentation may include:
